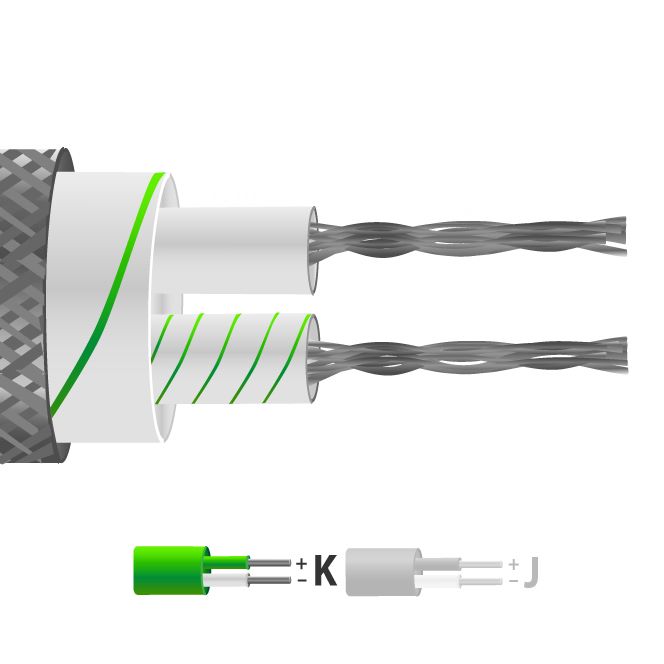

Tipo K Fibra de vidrio aislado Cable de par plano / alambre con sobretrenzado de acero inoxidable (IEC)
Construccin de par plano aislado con fibra de vidrio, conductores colocados planos, fibra de vidrio aislada con chaqueta de fibra de vidrio, silicona barnizada en todas partes + trenza de acero inoxidable para mayor proteccin y resistencia mecnica. Buena resistencia a la temperatura, pero no es adecuado donde hay fluidos presentes.
Caractersticas tcnicas
| Descripción General | Good strength to physical disturbance and high temperature (up to 400°C). Will not prevent ingress of fluids. |
|---|---|
| Longitud del cable | 5m, 10m, 25m, 50m, 100m |
| Cable Type | Flat pair cable |
| Núcleo / hebras | 7/0.2mm |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| + Colour | Green |
| - Colour | White |
| Drain Wire | No |
| Material de aislamiento | Glassfibre insulated extension cable with stainless steel overbraiding |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Max. Temperatura | +350°C (short periods up to 400°C) |
| Min. Temperatura | -60°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | No |
| Estándares cumplidos | Colour code (cores & jacket) to IEC-584-3 |
| Tipo de termopar | K |
| Tolerancia | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
