Tipo T PFA aislado doble par trenzado termopar cable / cable (ANSI)
Cambiar moneda
SKU
XE-2804
4,38 €
3,65 €

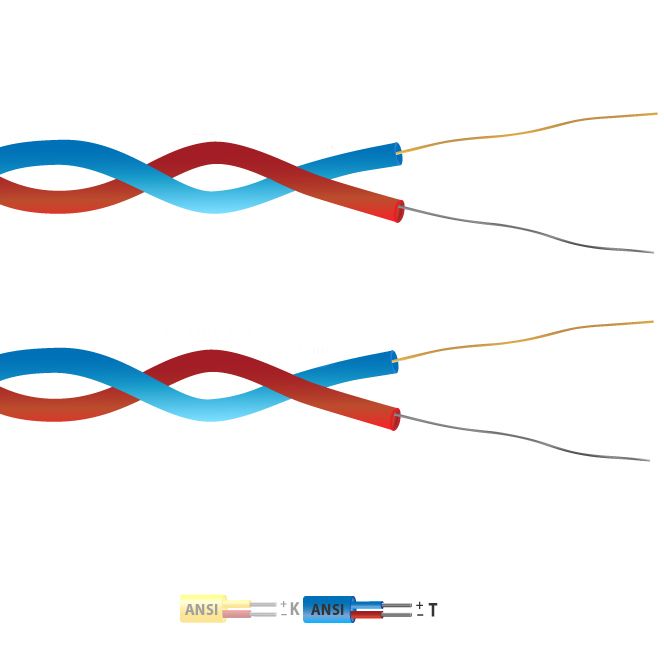

Tipo T PFA aislado doble par trenzado termopar cable / cable (ANSI)
PFA Teflón® doble par trenzado para extender o hacer termopares simples. PFA Teflón®tiene una buena resistencia mecánica y flexibilidad, resistente a aceites, ácidos y otros fluidos adversos, gases, vapor y presión.
Especificaciones
| Descripción General | Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. |
|---|---|
| Longitud del cable | 10m, 25m, 50m, 100m |
| Cable Type | Single pair of PFA insulated conductors twisted together |
| Núcleo / hebras | 1/0.2mm, 1/0.3mm |
| Conductor Cross Section 1/0.2 (mm2) | 0.032 |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| + Colour | Blue |
| - Colour | Red |
| Drain Wire | No |
| Material de aislamiento | PFA Teflon® |
| Loop Resistance 1/0.2 (Ohms per combined metre) | 16.2 |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 6.5 |
| Max. Temperatura | +260°C |
| Min. Temperatura | -75°C |
| + Conductor | Copper |
| - Conductor | Constantan |
| Screen | No |
| Estándares cumplidos | Colour code (cores & jacket) to ANSI MC96.1 |
| Tipo de termopar | T |
| Tolerancia | Class 1 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
