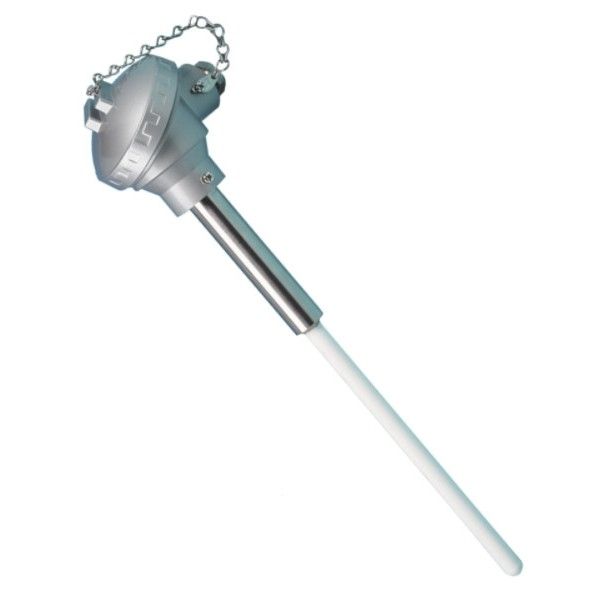

Termopares de horno de cerámica para alta temperatura (1400 oC) con vainas de porcelana aluminosas - Tipos K,N
Cambiar moneda
SKU
XE-6950
145,18 €
120,98 €
El tubo de soporte de acero inoxidable de 100 mm de largo fija la cubierta de cerámica al cabezal industrial y se incluye en la longitud total de la vaina.
Descripción General | Ceramic thermocouples for furnaces, kilns and other high temperature applications |
---|---|
Tipo de sensor | Made with rugged 20 gauge (0.8mm dia) thermocouple wire for long-term performance |
Tipo de termopar | Types K and N with Aluminous Porcelain sheaths, rated to 1400°C |
Material de la funda | 12 mm diameter ceramic sheath |
Max. Temperatura | +1400°C |
IP Rating | IP67 rated industrial protection head with cable entry and screw terminal block |
Support Tube | 21 mm O.D. support tube, 100 mm long |
