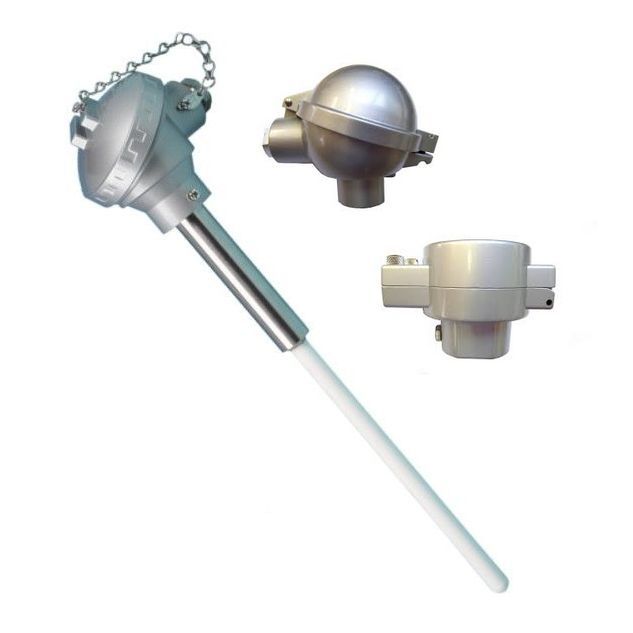

Rare Metal Thermocouples RMT STYLE (UK Manufactured)

Cambiar moneda

SKU
XE-RMT-STYLE
Enquire Here

-Or-

Tiempo de espera:
Made to order
Codigo de Tarifa:
90330000
País de fabricación:
GB
RoHS Obediente:
Product Compliance:

Rare metal thermocouple R , S and B assemblies. Rare metal thermocouples are made from conductors containing platinum and rhodium alloys and are suited for measuring high temperatures up to 1700°C.

This product has to be ordered through our 'Custom Build' system. Click below to submit your requirements for a quotation.

Custom Build you Sensor

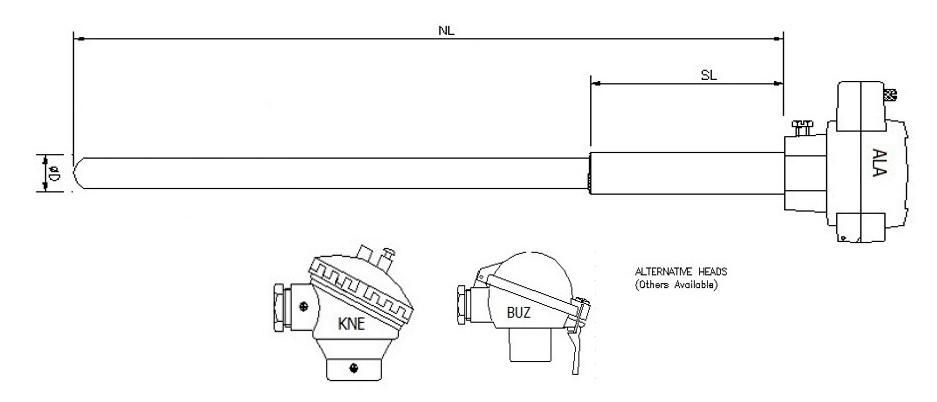

RMT Style schematic

Application Notes:

  • High temperature platinum temperature sensor
  • Designed specifically for your application / environment
  • Will withstand tough industrial use

Overview

Type  Rare Metal Thermocouple Temp Sensor to High Temp
Temp Range 0 to 1700°C
Common Sensor Types R, S, B
Common Sheath Size (mm) 6.0, 8.0, 10.0, 12.0, 13.0, 15.0, 17.0, 20.0, 25.0, 28.0
Common Element Diameters (mm)

0.35, 0.45, 0.5

Shank Material 310SS, 466SS, INCONEL 600
Head Options ALA, KNE (IP65), BUZ



Thermocouple Type R and Type S Technical Details Thermocouple Type B Technical Details
Type R and S thermocouples are the most popular rare metal thermocouple types. They are very similar in conductor construction. The main difference is that Type R is more popular in th UK whereas Type S is more popular in Europe. As the cost of Platinum and Rhodium is high in comparison to base metal thermocouples, Type R & Type S wire can be recovered and recycled from failed thermocouples. The negative leg on a Type R or S thermocouple is pure platinum and the positive leg is platinum / rhodium. Type B has a very high maximum temperature. For short periods it can be used to measure temperatures up to 1850°C, with up to 1700°C being measured under continuous operation. One quirk of Type B thermocouples is that its output doesn't change between 0 and 42°C meaning that it is unsuitable for measuring temperatures near this range. We recommend Type B thermocouples are only used for measuring above 200°C.



Detailed Specifications

Tipo de sensor Rare Metal Thermocouple Temperature Sensor to High Temperature
Max. Temperatura 1700°C
Min. Temperatura 0°C
Common Sensor Types R, S, B
Common Sheath Size 6.0, 8.0, 10.0, 12.0, 13.0, 15.0, 17.0, 20.0, 25.0, 28.0 (mm)
Common Element Diameters 0.35mm, 0.45mm, 0.5mm
Head Options ALA, KNE (IP65), BUZ
Shank Material 310SS, 466 SS & Inconel 600
Thermocouple Type R Continuous Temp Range 0 to 1600°C
Thermocouple Type R Short-Term Temp Range -50 to 1700°C
Thermocouple Type R Material Platinum/Rhodium (+ LEG) / Platinum (- LEG)
Thermocouple Type S Continuous Temp Range 0 to 1600°C
Thermocouple Type S Short-Term Temp Range -50 to 1750°C
Thermocouple Type S Material Platinum/Rhodium (+ LEG) / Platinum (- LEG)
Thermocouple Type R /S Tolerance Class 1 0 to 1100°C (+/- 1°C)
Thermocouple Type R /S Class 2 Tolerance 0 to 600°C (+/- 1.5°C)
Thermocouple Type B Continuous Temp Range 200 to 1700°C
Thermocouple Type B Short-Term Temp Range 0 to 1850°C
Thermocouple Type B Material Platinum / Rhodium
Thermocouple Type B Tolerance Class 1 none available
Thermocouple Type B Class 2 Tolerance 600 to 1700°C (+/- 0.0025°C)
