Dual Surface Immersion (Waterproof) Probe - Type K
Cambiar moneda
SKU
XE-3841-001
69,67 €
58,06 €
An ideal probe for water temperature testing to aid legionella prevention.

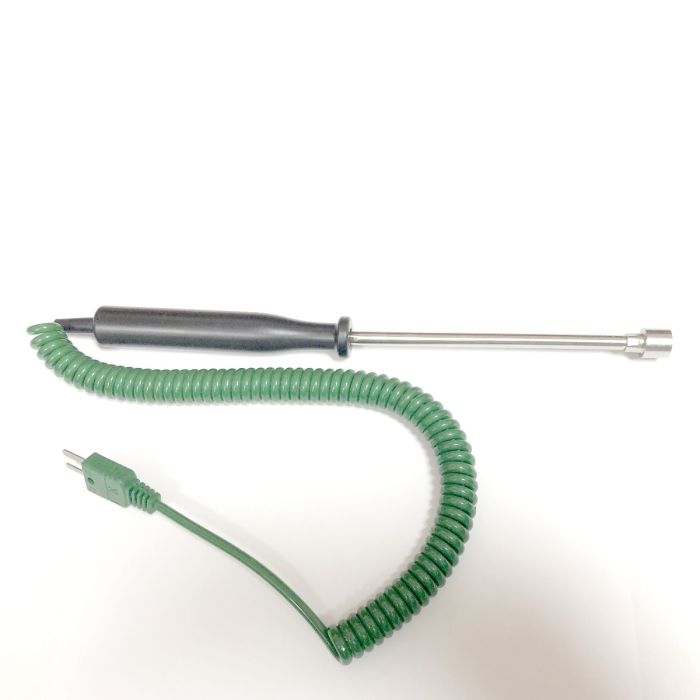

Stainless steel sheath with a moulded handle and 2 metres of coiled extension cable terminated in a miniature thermocouple plug.
- K Type Thermocouple Class I (±1.5°C ±0.25%)
- Measurement Range: -10 to + 200°C
- Probe measures Ø12 x 120mm long stem with Ø12 x 10mm tip.
- Dual Purpose for liquid and surface temperature measurement
- Ribbon band sensor sealed with Silicon Rubber compound to ensure the probe is fully waterproof.
| Descripción General | Dual Purpose for liquid and surface temperature measurement |
|---|---|
| Tipo de termopar | K Type Thermocouple Class I (±1.5°C ±0.25%) |
| Calibracion | IEC |
| Diámetro de la sonda | 12mm |
| Longitud de la sonda | 120mm long stem with Ø12 x 10mm tip |
| Material de la funda | Stainless steel sheath |
| Longitud del cable | 1m of straight polyurethane with moulded connector |
| Cable Type | polyurethane |
| Cable Termination | moulded connector |
| Max. Temperatura | +200°C |
| Min. Temperatura | -10°C |
| Estándares cumplidos | Colour code (cores & jacket) to IEC-584-3 |
| IP Rating | IP67 |
| Tipo de conector | Miniature moulded flat pin plug, colour coded ‘green’ in accordance IEC specification |
| Connection Type | Plug |
| Tamaño del conector | Miniature (moulded-on) |
| Features #1 | Ribbon band sensor sealed with Silicon Rubber compound to ensure the probe is fully waterproof. |
